Introduction and Usage of the Radio
Solar Panel
Solar charging: Under normal conditions, it takes 70-80 hours to fully charge. When charging, place the device in direct sunlight.
LED Light Switch
Press the “Flashlight” button once: Turn on the low brightness mode.
Press twice: Turn on the medium brightness mode.
Press three times: Turn on the high brightness mode.
Press four times: Turn off the flashlight.
Charging Indicator
When charging, the blue indicator light will turn on.
When fully charged, all 3 blue indicator lights will light up.

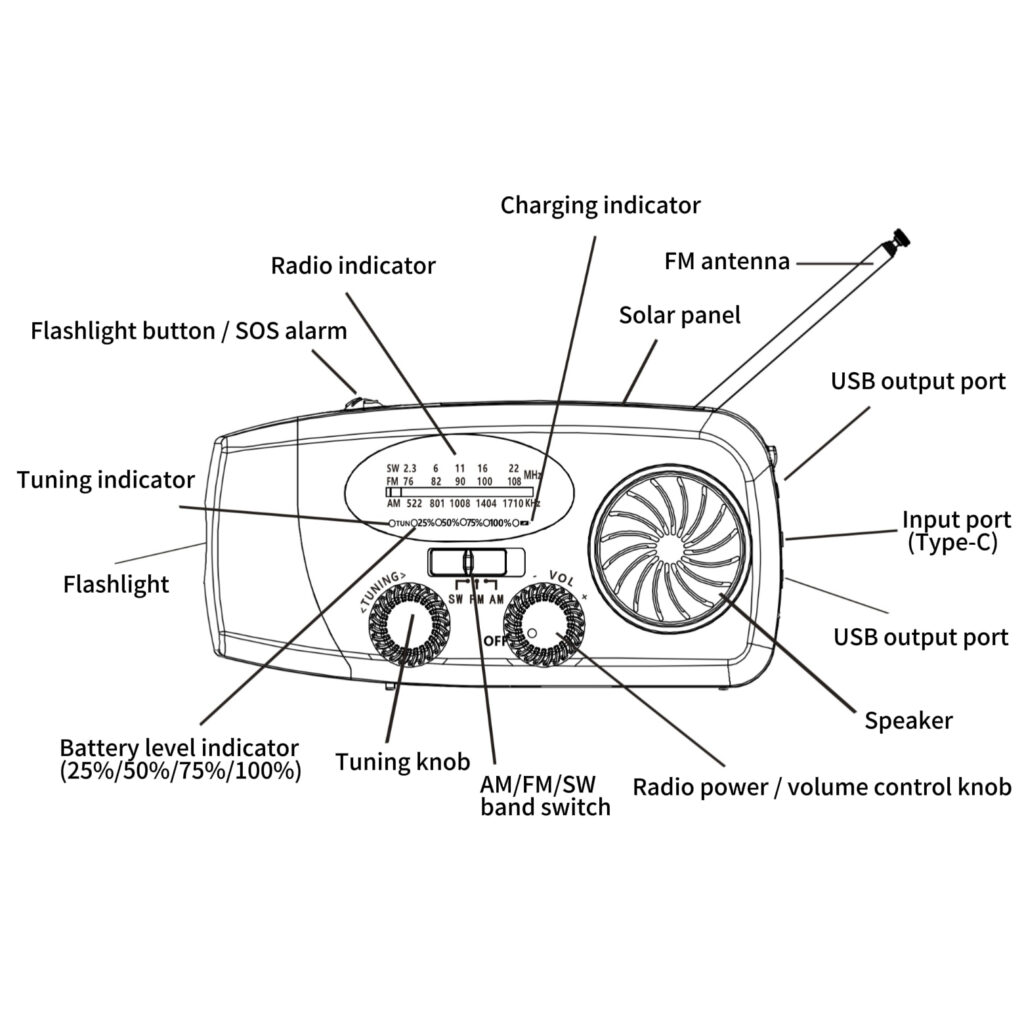

Component Description
Tuning Indicator (TUN) & Tuning Knob
When tuning to a radio station with good signal reception, the tuning indicator (TUN) will light up green.
AM/FM/SW Band Switch
Supported frequency bands:
AM 522-1710KHz
FM 76-108MHz
SW 2.3-22MHz
Frequency Display
Displays the frequency of the currently selected radio station.
Radio Power & Volume Control Knob
Turn clockwise to power on and increase volume; turn counterclockwise to power off and decrease volume.
Hand Crank Generator (For Charging Only)
1.Pull out the crank handle to turn it left or right.
2.For first-time use of the generator function, crank continuously for 3-5 minutes (either direction) to activate the built-in battery.
3.The cranking speed should reach 130-150 revolutions per minute. Under normal conditions, it takes about 7 hours to fully charge the battery.
Speaker
Audio output device.

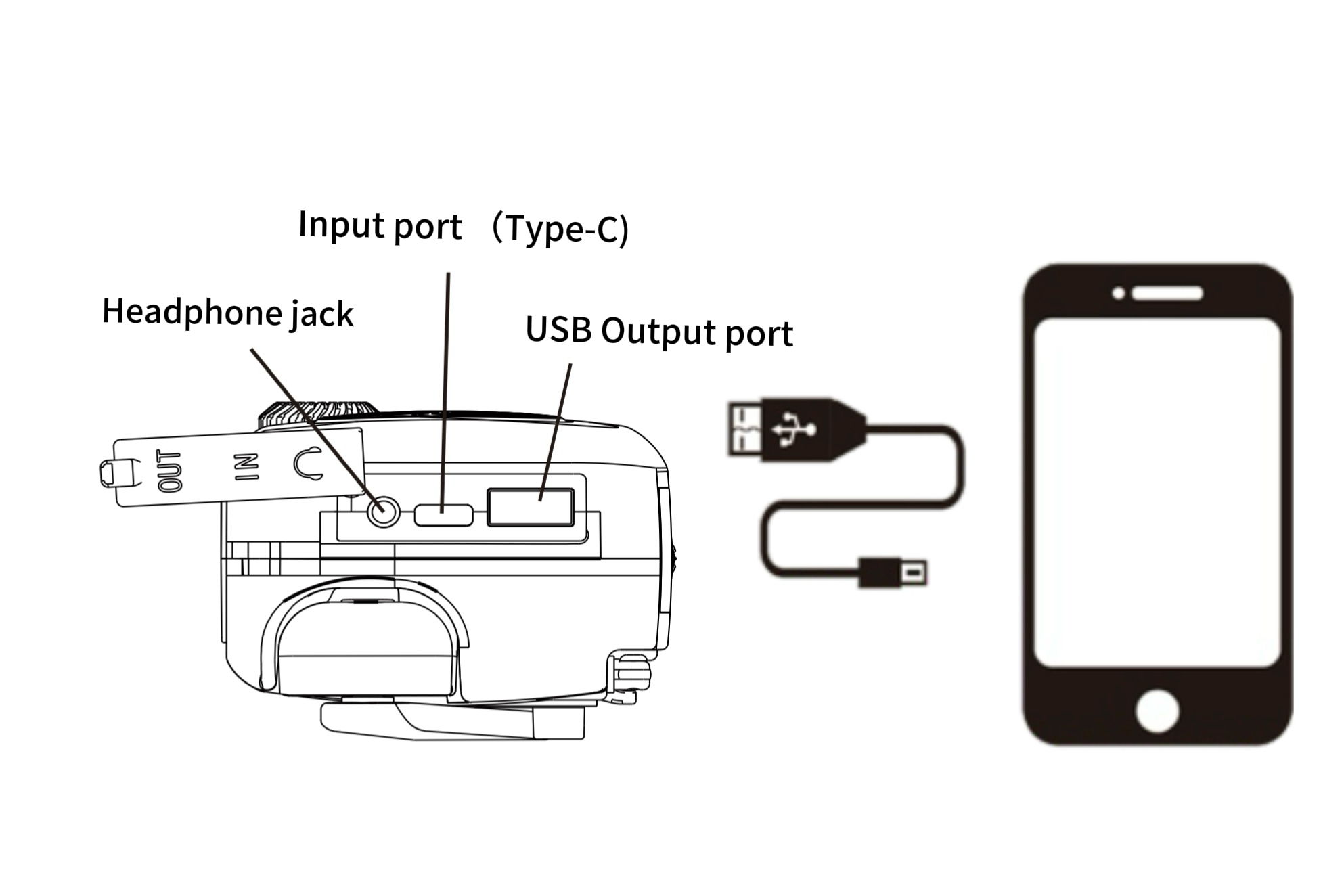

Interface Description
Type-C Input Port：For charging the radio.
USB Charging Output Port：Can be used to charge mobile phones.
Headphone Jack：Compatible with 3.5mm headphones for private listening, preventing the speaker from disturbing others.
Precautions
1.Do not use this product in high-temperature, humid environments or near fire sources.
2.If the product has been idle for more than 60 days, crank the handle for 3-5 minutes before use to activate the built-in battery.
3.To avoid static noise when listening to the radio, please turn off the “USB output button”.
4.To preserve the device’s power, the USB output charging function is recommended for emergency backup use only.
Product Warranty
【High Quality】：Certified with PSE/CE/FCC/ROHS/MSDS safety standards.
【Warranty】：We provide a 1-year warranty service for product malfunctions or damage, so you can use it with confidence.
FAQ
Can the device still be charged and used when there is a total power outage with no outlets?
It supports three charging methods: hand crank, solar, and USB. It can generate power independently without an external power source.
Can it be used normally in the rain?
With an IPX3 design, it supports splash resistance and light rain protection. It cannot be used in heavy rain, standing water, or deep water immersion. During heavy rain evacuation, avoid prolonged exposure to heavy rain. Wipe off any splashed rainwater promptly, and it will work normally, meeting the needs of use in humid, flood-prone shelters.
Can it charge mobile phones?
It has a built-in standard USB output port, which can provide emergency power for most mobile phones and small digital devices.
What is the function of the reflective strip on the body, and will it easily fall off during daily storage?
If trapped in the dark at night, the reflective strip reflects light under flashlights or car headlights, allowing rescuers to quickly locate you. The reflective strip uses high-temperature-resistant adhesive. When stored normally in an emergency kit or car storage box, it will not easily fall off without sharp friction, ensuring strong long-term stability for standby use.
